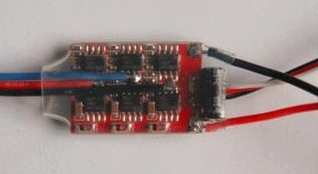

10A Aircraft ESC
¡ñElectrical performance parameters of ESC:
Input Voltage£º2-3 cells LiPo batteries /5-12 cells NiMh batteries
Continuous current output£º10A
The maximum allowable burst current£¨10S£©:12A
BEC£ºSBEC/UBEC/ OPTO
BEC output£º5V/3A(SBEC),5V/1A-3A(UBEC),5V/0.5A(OPTO)
Standardallocation£ºUBEC,5V/1A
¡ñ Shape and weight of ESC £º
Dimensions (Length©~Width©~Height)£º36*21*7
weight£º12G£¨with BEC£©,10G(OPTO)
Positive and negative power wires£ºwire size 18# Material: Copper SiliconeWire; Color: +
red ¨C black Length 100 (mm)
UVW wire£ºwire size 18# Material: Copper SiliconeWire; ColorU black V blue W red
Length 80 (mm)
Signal wire: wire size 24# Length 200 (mm) Connector specification: 3pin DuPont
terminal
Types suitable for T head:Rubber head Specification ¡é3.5*12
Thrum heat shrinkable catheter specification£º¡é4.5*20 Color: Red, white,Black
Heat sink specification£º 23*30 Color: Silver
ESC heat shrinkable catheter tone specification£º¡é25*60 Color:black
