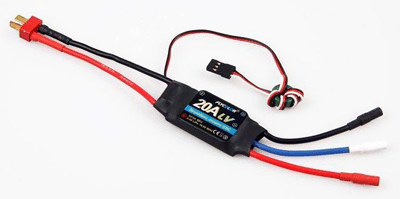

20A Aircraft ESC
¡ñElectrical performance parameters of ESC:
Input Voltage£º2-4 cells LiPo batteries /5-12cells NiMh batteries
Continuous current output£º20A
The maximum allowable burst current£¨10S£©:25A
BEC£ºSBEC/UBEC/OPTO
BEC output£º5.5V/3A(SBEC),5.5V/1A-3A(UBEC),5.5V/0.5A(OPTO)
Standardallocation£ºUBEC 5V/3A
¡ñShape and weight of ESC:
Dimensions (Length©~Width©~Height):54*25*11mm
weight£º30G£¨with BEC£©,28G(OPTO)
Positive and negative power wires: wire size 16# Material: Copper SiliconeWire; Color:+
Red -Black; Length: 100 (mm)
UVW wire£ºwire size 16# Material: Copper SiliconeWire color U black V blue W red
Length 80 (mm)
Signal wire: wire size: 24# length 200 (mm) Connector specification: 3pin DuPont
terminal
Types suitable for T head:Rubber head Specification ¡é3.5*12
Thrum heat shrinkable catheter specification:¡é4.5*20 Color: Red, white,Black
Heat sink specification: 23*30 Color: Silver
ESC heat shrinkable catheter tone specification£º¡é25*60 Color:black
