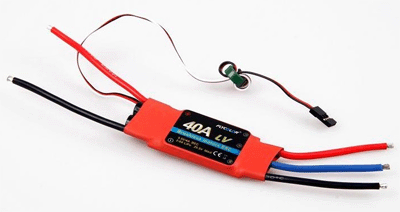

40A Aircraft ESC
¡ñElectrical performance parameters of ESC:
Input Voltage:2-6cells LiPo batteries /5-15 cells NiMh batteries
Continuous current output:40A
The maximum allowable instantaneous current (10S):60A
BEC£ºSBEC/UBEC/OPTO
BEC output:£º5.5V/4A(SBEC),5.5V/1A-4A(UBEC),5.5V/1A(OPTO)
Standard allocation£ºSBEC 5.5V/4A
¡ñShape and weight of ESC£º
Dimensions (Length©~Width©~Height)£º70*32*13
Weight£º51G£¨with BEC£©,46G(OPTO)
Positive and negative power wires£ºwire size14 #; Material: Copper Silicone Wire; Color:+
Red - Black; Length: 100 (mm)
UVW wire: wire size: 14 #; Material: Copper Silicone Wire; Color: U Black V Blue W
Red; Length: 80 (mm)
Signal wire: wire size: 24#; Length: 280 (mm); Connector specification: 3pin DuPont termi
nal
Types suitable for T head: Rubber head Specification: ¡é3.5*12
Thrum heat shrinkable catheter specification:£º¡é4.5*20 Color red white black
Heat sink specification£º 29*40 color silver
Electric heat shrinkable catheter tone specification£º¡é35*80 Color red
