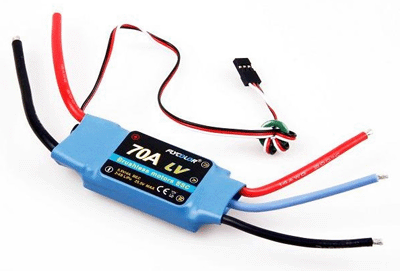

    70A Aircraft ESC



    ¡ñElectrical performance parameters of ESC:

    Input Voltage: 2-6LiPo batteries / 5-18 NiMh batteries

    Continuous current output: 70A

    The maximum allowable instantaneous current (10S): 100A

    BEC: SBEC/UBEC/OPTO

    BEC output: 5.5V/4A (SBEC), 5.5V/1A-4A (UBEC), 5.5V/1A (OPTO)

    Standardconfiguration: UBEC 5.5V/4A

    ¡ñShape and weight of ESC:
    Dimensions (Length©~Width©~Height): 70*32*17

    Weight: 74G (with BEC), 69G (OPTO)

    Positive and negative power wires: wire size12#; Material: Copper SiliconeWire; Color: + R

    ed -Black; Length: 100 (mm)

    UVW wire: wire size: 14 #; Material: Copper Silicone Wire; Color: URed VBlueW Black; L

    ength: 80 (mm)

    Signal wire: wire size: 24#; Length: 280 (mm); Connector specification: 3pin DuPont termi

    nal

    Types suitable for T head:    Rubber head Specification:¡é3.5*12

    Thrum heat shrinkable catheter specification: ¡é4.5*20;         Color: Red, White, Black

    Heat sink specification: 29*40                                 Color: Silver

    Electric heat shrinkable catheter tone specification:¡é35*80      Color: Blue
