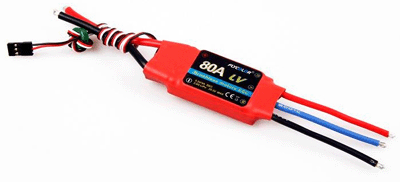

80A Aircraft ESC
¡ñ Electrical performance parameters of ESC :
Input Voltage£º2-6cells LiPo batteries /5-18cells NiMh batteries
Continuous current output£º80A
The maximum allowable instantaneous current £¨10S£©:100A
BEC£ºSBEC/UBEC/OPTO
BEC output:£º5.5V/4A(SBEC),5.5V/1A-4A(UBEC),5.5V/1A(OPTO)
Standardallocation£ºSBEC 5.5V/4A
¡ñ Shape and weight of ESC£º
Dimensions (Length©~Width©~Height)£º67*32*23mm
Weight£º94G(with BEC), 89 G (OPTO)
Positive and negative power wires: wire size12#; Material: Copper SiliconeWire; Color:+
Red -Black; Length: 100 (mm)
UVW wire: wire size: 14#; Material: Copper Silicone Wire; Color: UBlack VBlueW Red; Le
ngth: 80 (mm)
Signal wire: wire size: 24#; Length: 280 (mm); Connector specification: 3pin DuPont
terminal
Types suitable for T head: Rubber head Specification: ¡é3.5*12
Thrum heat shrinkable catheter specification£º¡é4.5*20 Color red white black
Heat sink specification£º 29*40 Color: Silver
ESC heat shrinkable catheter tone specification£º¡é35*80 Color re
