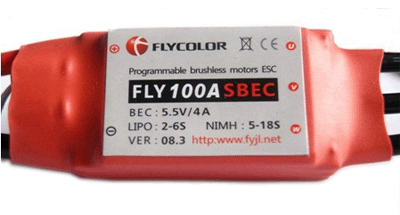

    100A Aircraft ESC



    ¡ñElectrical performance parameters of ESC:

    Input Voltage: 2-6 cells LiPo batteries / 5-18 cells NiMh batteries

    Continuous current output: 100A

    The maximum allowable instantaneous current (10S): 140A

    BEC: SBEC/UBEC/OPTO

    BEC output: 5.5V/4A (SBEC), 5.5V/1A-4A (UBEC), 5.5V/1A (OPTO)

    Standardallocation: SBEC 5.5V/4A

    ¡ñShape and weight of ESC:

        Dimensions (Length©~Width©~Height): 67*32*23mm

    Weight: 99G (with BEC), 94G (OPTO)

    Positive and negative power wires: wire size10 #; Material: Copper SiliconeWire; Color:+ R

    ed -Black; Length: 100 (mm)

    UVW wire: wire size: 12 #; Material: Copper Silicone Wire; Color: UBlack VBlueW Red; L

    ength: 80 (mm)

    Signal wire: wire size: 24#; Length: 280 (mm); Connector specification: 3pin DuPont termi

    nal

    Types suitable for T head:Rubber head Specification:¡é5.0*20; Type: The power suppl

    y side can use ¢ 5.0

    Thrum heat shrinkable catheter specification: ¡é6.0*28;         Color: Red, Black

    Heat sink specification: 29*40                                  Color: Silver

    ESC heat shrinkable catheter tone specification:¡é35*80       Color: Red
