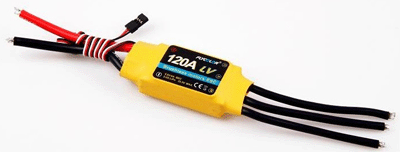

120A Aircraft ESC
¡ñ Electrical performance parameters of ESC:
Input Voltage£º2-6 cells /6-12 cells LiPo batteries
Continuous current output£º120A
The maximum allowable instantaneous current £¨10S£©:150A
BEC£ºSBEC/UBEC/OPTO
BEC output:£º5.5V/4A(SBEC),5.5V/1A-4A(UBEC),5.5V/1A(OPTO)
Standard allocation£ºSBEC 5.5V/4A
¡ñ Shape and weight of ESC £º
Dimensions (Length©~Width©~Height):£º67*32*22mm
Weight:£º102G£¨with BEC£©,97G(OPTO)
Positive and negative power wires: wire size10 #; Material: Copper SiliconeWire; Color:+ R
ed -Black; Length: 100 (mm)
UVW wire: wire size: 12 #; Material: Copper Silicone Wire; Color: UBlack VBlueW Red; L
ength: 80 (mm)
Signal wire: wire size: 24#; Length: 280 (mm); Connector specification: 3pin DuPont
terminal
Types suitable for T head: Rubber head Specification:¡é5.0*20; Type: The power
supply side can use ¢ 5.0
Thrum heat shrinkable catheter specification:¡é6.0*28 Color: Red, Black
Heat sink specification: 29*40 Color: Silver
Heat sink specification£º¡é35*80 Color :yellow
