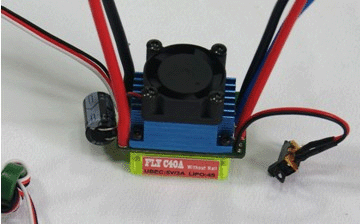

40A Car ESC
¡ñ Electrical performance parameters of ESC :
Input Voltage£º4 cells LiPo batteries
Continuous current output£º40A
The maximum allowable burst current£¨10S£©:60A
BEC£ºUBEC(Without Hall)
BEC output£º 5V/3A
¡ñ Shape and weight of ESC£º
Dimensions (Length©~Width©~Height)£º50*28*33£¨mm£©
Weight£º68G
Positive and negative power wires£ºwire size 16# Material: Copper SiliconeWire Color:+
Red -Black Length 100 (mm)
UVW wire£ºwire size 16# Material: Copper SiliconeWire color :U black V blue W red
Length 80 (mm)
Signal wire£º wire size 24# length 200 (mm) Connector specification 3pin DuPont
terminal
Types suitable for T head£º Rubber head Specification ¡é3.5*12
Thrum heat shrinkable catheter specification£º¡é4.5*20 Color: Red, white, Black
Heat sink specification£º 32*28*12 color blue
|
ESC for R/C car/vehicle model with brushless non-Hall motor£º | |||||
|
Product category |
Lithium battery |
Continuous current |
Max current (10secs) |
BEC output |
Program (changeable or non-changeable) |
|
FLY-C25A |
2S/4S |
25A |
60A |
5V/2A |
changeable |
|
FLY-C40A |
2S/4S |
40A |
100A |
5V/3A |
changeable |
|
FLY-C60A |
2S/4S |
60A |
300A |
5V/3A |
changeable |
|
FLY-C80A |
2S/6S |
80A |
380A |
5.5V/4A |
changeable |
|
FLY-C100A |
2S/6S |
100A |
510A |
5.5V/4A |
changeable |
|
FLY-C150A |
2S/6S |
150A |
780A |
5.5V/4A |
changeable |
|
ESC specification for R/C car/vehicle with brushless Hall motor£º | |||||
|
Product category |
Lithium battery |
Continuous current |
Max current (10secs) |
BEC output |
program (changeable or non-changeable) |
|
FLY-CH80A |
2S/6S |
80A |
380A |
5.5V/4A |
changeable |
|
FLY-CH100A |
2S/6S |
100A |
510A |
5.5V/4A |
changeable |
|
FLY-CH150A |
2S/6S |
150A |
780A |
5.5V/4A |
changeable |
