Analog Servo
Package: One polybag one piece
Feature: Support Futaba, JR, Sanwa and Hitec remote system.
Important Notes:
1¡¢ Specify the connector type when you purchase the servo.
2¡¢ Refer to the figure when installing the servo accessories.
3¡¢ For engine powered airplanes and boats, rubber must be used to reduce vibration.
4¡¢ Please choose correct model for your application.
5¡¢ Torque over-loaded will damage the servo's mechanism-.
6¡¢ Keep the servo clean and away from dust, corrosive gas and humid air
|
Name |
Model |
Wire |
Size (mm) |
Weight |
4.8v |
6v |
Color | |||||
|
Speed |
Torque |
Speed |
Torque | |||||||||
|
A |
B |
C |
g |
sec/60¡ã |
kg-cm |
sec/60¡ã |
kg-cm | |||||
|
3 g |
Plastic Gear Servo |
S0003 |
10 |
19.4 |
7.9 |
19 |
3 |
0.14 |
0.4 |
0.12 |
0.6 |
Blue |
|
3.7g |
S0307 |
15 |
19.8 |
8.4 |
21.3 |
3.7 |
0.14 |
0.5 |
0.12 |
0.8 |
Blue | |
|
4.3 g |
S0403 |
15 |
19.8 |
8.4 |
23.3 |
4.3 |
0.14 |
0.6 |
0.12 |
0.8 |
Blue | |
|
5 g |
S0005 |
18 |
21.5 |
11.8 |
20.9 |
5 |
0.14 |
0.8 |
0.12 |
1 |
Blue | |
|

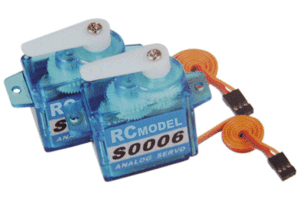

6 g |
S0006 |
18 |
21.5 |
11.8 |
22.7 |
6 |
0.12 |
0.8 |
0.10 |
1.2 |
Blue | |
|
8 g |
S0008 |
18 |
22.8 |
11.6 |
23.6 |
8 |
0.12 |
1.2 |
0.10 |
1.4 |
Blue | |
|
9 g |
S0009A |
18 |
22.3 |
11.8 |
26.3 |
9 |
0.14 |
1.3 |
0.12 |
1.6 |
Black | |
|
16 g |
S8205 |
18 |
30 |
11.9 |
29.5 |
16 |
0.16 |
1.8 |
0.14 |
2 |
Black | |
|
25 g |
S0250/9650 |
18 |
36 |
15.2 |
28.8 |
25 |
0.14 |
2.2 |
0.12 |
2.5 |
Black | |
|
25g |
S0250/9257 |
18 |
36 |
15.2 |
28.8 |
25 |
0.10 |
2.0 |
0.08 |
2.2 |
Black | |
|
36 g |
S3003 |
30 |
40.8 |
20.1 |
38 |
36 |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
Black | |
|
40 g |
S3006 |
18 |
40.8 |
20.1 |
38 |
40 |
0.14 |
6 |
0.12 |
6 |
Black | |
|
9 g |
Metal Gear Servo |
S0009A |
18 |
22.8 |
11.8 |
26.3 |
9 |
0.14 |
1.3 |
0.12 |
1.5 |
Blue |
|
27 g |
S0270 |
18 |
31.2 |
16.3 |
29.5 |
27 |
0.14 |
3 |
0.12 |
3.5 |
Black | |
|
20 g |
S8213 |
18 |
29 |
13.5 |
30.4 |
20 |
0.14 |
2.8 |
0.12 |
3 |
Black | |
|
25 g |
S8216 |
18 |
28.3 |
14 |
30.5 |
25 |
0.14 |
3 |
0.12 |
3.5 |
Black | |
|
25 g |
S0250/9257A |
18 |
36 |
15.2 |
29 |
25 |
0.10 |
2 |
0.08 |
2.2 |
Black | |
|
52 g |
S0060 |
18 |
40.8 |
20.1 |
38 |
52 |
0.14 |
6 |
0.12 |
6.5 |
Black | |
|
52g |
S0060 |
30 |
41.3 |
20.3 |
38.7 |
52 |
0.18 |
6 |
0.16 |
7.5 |
Black | |
|
30 g |
S0070 |
18 |
44.1 |
23 |
24.4 |
30 |
0.30 |
7 |
0.28 |
7.5 |
Black | |
|
56 g |
S0090 |
18 |
40.8 |
20.1 |
38 |
56 |
0.16 |
12 |
0.14 |
13 |
Black | |
|
56 g |
S0090 |
30 |
41.3 |
20.3 |
38.7 |
56 |
0.18 |
9 |
0.16 |
10.2 |
Black | |
|
56 g |
S0110 |
30 |
41.3 |
20.3 |
38.7 |
56 |
0.18 |
11 |
0.16 |
12 |
Black | |
|
56 g |
S0130 |
18 |
40.8 |
20.1 |
38 |
56 |
0.16 |
12 |
0.14 |
13 |
Black | |
|
56 g |
S0150 |
18 |
40.8 |
20.4 |
38 |
56 |
0.16 |
14 |
0.14 |
15 |
Black | |
