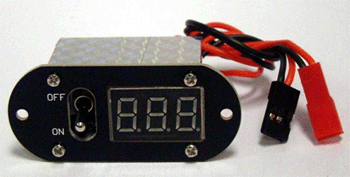

2 in 1 5A UBEC step-down switch

Product features:

l         Using ultra high brightness led segment which can clearly visible in the sunshine.

l         A set of electronic switch, the voltage display of input and output, high current UBEC in one, which can simplify your airborne equipment.

l         The three led segment display real-time input and output voltage value, which can help you to know the condition of power supply at once.

l         The output voltage value can free switch to 5.2 or 6V.

l         5A large current output ( MAX: 8A ), which can provided sufficient working current for the steering gear.

l         Working voltage 6-13V, which can be directly power supplied by lithium, nickel-metal hydride and nickel cadmium, A123 battery.

l         Switching the switch which is place in the back of the step-down transformer can adjust the output voltage value (disconnect the receiver or the electric device before adjust the voltage)

Technical parameters:

l         Input voltage: 6—13V

l         Output voltage: 5.2/6V (Factory default voltage: 5.2V )

l         Output current: 0-5A ( MAX: 8A )

l         Weight: 60g

l         Volume: 40mm ( L ) * 27mm ( W) * 35mm ( H )

Attentions:

l         Not allowed to counter-battery polarity.

l         Do not come into contact with installation of grease or water, or near a corrosive substance.

l         Ventilation should be pay attention in the condition of large current. Please use the high-quality battery to avoid loss-of-control.
