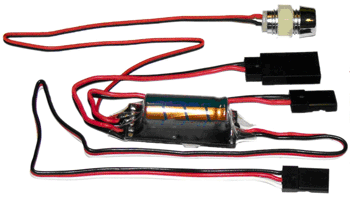

Petrol engine CDI remote control switch

This product is used to turn the remote petrol engine on or off. The remote control switch series with the CDI wire and the CDI power wire, you can use either channel to control your petrol engine (usually the on/off channel). This product can effectively protect yourself and the model plane being hurt from suddenness. In addition, this product has install an external large capacitor for receiver power with 4700UF, it can make the receiver voltage more stable, more pure, and improve the operation stability of electronic devices effectively. To a certain extent, it can eliminate the clutter interference and effective way to ease the voltage fluctuations which is coursed by multiple steering engines action at the same time.

Product Features：

1. LED indicator light shows the current status of CDI Ignition.

2. Retrofitting 4700UF large capacitor voltage can make the receiver more stable, pure.

3. Wide operating voltage can applied to lithium, nickel hydride, nickel cadmium, A123 and other battery-powered directly.

4. Can be used for other purposes, such as: pull the smoke detectors, retract or expand the landing gear, lighting fireworks and so on

5. The receiver and the CDI is completely separated, so you wouldn’t worry the receiver will be interfered by high frequency signal which is happen to CDI.

parameter：

weight：10g(include lead wire )      cubic measure：33mm(length) * 13mm(wide)* 13mm(high)       follow current：0~10A             working voltage：3V~13V
