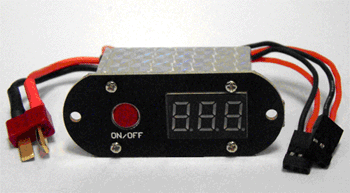

3 in 1 15A UBEC step-down switch
Product features:
l Using ultra high brightness led segment which can clearly visible in the sunshine.
l A set of electronic switch, the voltage display of input and output, high current UBEC in one, which can simplify your airborne equipment.
l The three led segment display real-time input and output voltage value, which can help you to know the condition of power supply at once.
l Output voltage 4.8-9.6V stepless adjustable, which adapt to a variety of high and low voltage servo and receiver.
l 15A large current output ( MAX: 20A ), which can provided sufficient working current for the steering gear.
l Working voltage 6-13V, which can be directly power supplied by lithium, nickel-metal hydride and nickel cadmium, A123 battery.
l It can once again the power-up and continue to maintain a normal output voltage at accident power-off
Technical parameters:
l Input voltage: 6—13V
l Output voltage: 4.8-9.6V (stepless adjustable, factory default voltage: 5.2V )
l Output current: 0-15A ( MAX: 20A )
l Weight: 60g
l Volume: 65mm ( L ) * 27mm ( W) * 35mm ( H )
Method of use:
l Press the red button for 2 seconds (button lights turn on, led segment display input voltage value for 3 seconds until button lights turning to flashing at this moment led segment display output voltage for 3 seconds after returning button light on and the led segment display input voltage value.
l Press the red button for 2 seconds to shutdown system.
l In the working state, short press the red button to switch the display channel of the output and input voltage value.
l If you want to adjust the output voltage value, short press the red button to switch to display the output voltage value, use a screwdriver to adjust the potentiometer at the end of the step-down converter, counterclockwise rotation can turn down the output voltage value, the clockwise rotation can turn up of the output voltage value ( notice: disconnect the receiver or the electric device to the converter before adjust the voltage)
Attentions:
l Not allowed to counter-battery polarity.
l Do not come into contact with installation of grease or water, or near a corrosive substance.
l Ventilation should be pay attention in the condition of large current. Please use the high-quality battery to avoid loss-of-control.
