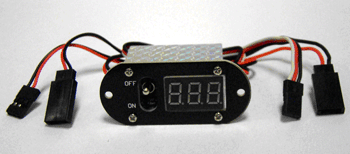

3 in 1 CDI remote flameout switch

Product features:

●Integrated CDI remote flameout switch, making flying safer

●Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.

●Integrated large current switch and a three led segment display the battery voltage

●Using ultra high brightness led segment which can clearly visible in the sunshine.

●using switch channel of the remote control to control the CDI (usually use the fifth channel)

Technical parameters:

l         working voltage: 6—13V

l         Working current of the switch: 0-15A

l         operating voltage of the Isolating switch:4-8V

l         operating current of the Isolating switch:0-3A

l         Weight: 60g(include the wire)

l         Volume: 40mm ( L ) * 22mm ( W) * 34mm ( H )

Attentions:

l         Not allowed to counter-battery polarity.

l         Do not come into contact with installation of grease or water, or near a corrosive substance.
