Min Power Box Ubec

Produce features:

l          Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.

l          Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.

l          Input / output voltage display switch

l          Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote flameout switch.

l          Integrated CDI remote flameout switch, making flying safer

l          Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.

l          Integrated 30ABEC ( MXA: 40A ), which can provide sufficient current to the actuator.

l          4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.

l          Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

l          Five leds display the distribution board’s working states.

l          Special place is designed for receiver to avoid the accidental from bombing damage in receiver.

l          Optional voltage meter of the distribution board can display real-time input/output voltage

Technology parameters:

l          Working voltage: 7-13V

l          Steering current, voltage :0-20A ,4.8-9 .7 V (factory voltage is 5.2V)

l          Weight: 80g

l          Volume:116mm(long)*88mm(wide)*13mm(height)

l          Working temperature:-20℃ to 85℃.

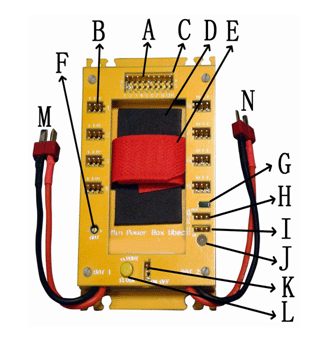

Function description:
A	1-8  input channel
B	1-8  output channel
C	CDI remote flameout switch control channel / switch of remote controller channel
D	A padded cushion，location of the receiver.
E	Receiver binding with magic ribbon.
F	Regulate output voltage value: 4.8-9.7V
G	CDI working power indicator light.
H	CDI power output terminal.
I	CDI power input terminal.
J	CDI power voltage indicator light.
K	CDI power voltage indicator light.
L	Input / output voltage display switch (use the optional voltage meter of the distribution board)
M	The first channel battery input terminal
N	The second channel battery input terminal

CDI signal states of the power supply:
