Min Power Box

Produce features:

l          Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.

l          Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.

l          Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote flameout switch.

l          Integrated CDI remote flameout switch, making flying safer

l          Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.

l          Input / output power is communicated directly,so the input voltage equal to the steering gear and receiver power supply voltage, simply use the different voltage values of the battery can be adapted to a variety of high and low voltage actuator and receiver.

l          Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

l          Five leds display the distribution board’s working states

l          Special place is designed for receiver to avoid the accidental from bombing damage in receiver.

Direct connection: When sectionboard uses 5V- 6V to supply power, then you can choose “direct connection”.

Voltage drop 0.5V: When sectionboard uses 6V and you don’t like the receive power too hight, then you can choose “voltage drop 0.5V”.

Voltage drop 7805: When sectionboard uses 7.2V- 8.4V high voltage to supply power, then you can choose “voltage drop 7805”.

Technology parameters:

l          Working voltage: 5V-8.4V

l          Servo’s working electricity:0A-30A

l          Weight: 70g

l          Volume:116mm(long)*88mm(wide)*13mm(height)

l          Working temperature:-20℃ to 85℃.

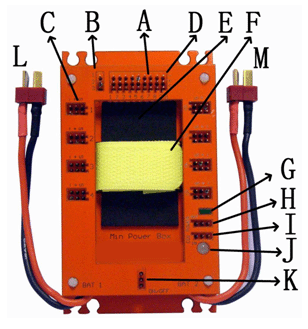

Function description:

A	1-8  input channel
B	The supply power’s selection terminal of the receiver:
	1、When two short circuit is direct connection.
	2、When three short circuit is 0.5V voltage drop.
	3、When hang in the air is 7805 voltage drop.
C	1-8  output channel
D	CDI remote flameout switch control channel / switch of remote controller channel
E	A padded cushion，location of the receiver.
F	Receiver binding with magic ribbon.
G	CDI working power indicator light.
H	CDI power output terminal.
I	CDI power input terminal.
J	CDI power voltage indicator light.
K	The power supply switch of the board
L	The first channel battery input terminal
M	The second channel battery input terminal

CDI signal states of the power supply:
