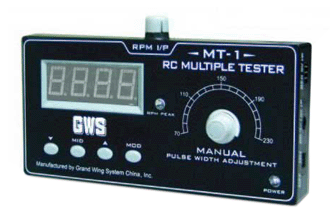

GWS Multi-Tester MT-1

MT-1, the Multi-Tester is the advanced tester for servos, transmitters, and for measuring propeller speed. The MT-1 is a newly designed/made multi-tester. It comes with more functions than the previous version of their Servo Tester.

Size: 140 x 70 x 20mm ( 5.51 x 2.76 x 0.79" )
Weight: 110g / 3.89 oz (Batteries not included)

Features:

• Measures the Pulse Width transmitted by a Transmitter for up to 9 channels. This is very useful when setting up your radio gear. You can troubleshoot channel settings and servo reverse directions.
• Measures the Pulse Width sent from Receiver.
• Tests the rotations of of the servo automatically at the pulse widths for top, medium and low points set by user.
• Test the automatic rotations of servos.
• Test the rotations of servos by turning the knob manually .
• Test the sensitivity of Servo (1uS per step resolution).
• To measure RPM of a spinning propeller from 2 to 6 blades with real time RPM value shown. The peak RPM value is up to 99990 revolutions per minute.
• Easy to read 4 digit red LED display.
• Power source can be from AAA cell x4, or an adapter with 7-15V or BEC (5V) from an ESC.
• An output port for applying Positive/Negative signals of Pulse Width from this tester.
• Four buttons for setting up functions and modes.
• Includes a servo extension wire and alligator clips for power input.
