Electricians Tools & Hand Tools  ¡ª   Battery Meters  ¡ª BVD-PRO

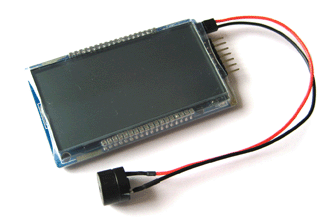

    BVD-PRO

    rc model,rc models,rc toys



    Feature

    1.       Auto display the voltage with 3 Arabic numerals for each single cell and the whole pack of 2-6S cell Lithium Polymer battery on the LED screen from the bottom to the top. The accuracy of the voltages is ¡À0.003V.
    2.       Warming sound will be alamed when there are abnormal situations as follows:
    1)      When the voltage of any single cell below 3.2V, it makes warming sound with the relative battery icon flashing.
    2)      When the voltage of any single cell over 4.49V, it makes warming sound with the relative battery icon flashing.
    3)      When the voltage difference between any two single cells is over 0.2V, it makes warming sound with the relative battery icon flashing.
    4)      When any two or three situations above happen at the same time, it makes warming sound with all the relative battery icon flashing.

    Technical Data
    Input voltage provided by the battery pack with 2-6 cells, and the min voltage should £¾6.2V
    Normal working voltage: 20 mA Voltage
    Accuracy: ¡À0.003V
