Program card(B)

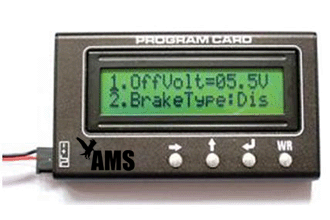

Adopting 2x16 point LCD panel, program card can make all setting conveniently and directly.
The keys function
KEY |
 |
 |
 |
WR |
FUNCTION |
To move the cursor horizontally |
To move the cursor vertically and change item or item value |
To confirm selected item or item value. |
To write and save setting parameter to ESC |
Program procedure
1. Unplug the battery of ESC and connect the PPM wire to program card properly.
2. Connect the battery to ESC, program card will read the parameter from ESC and display on LCD panel.
3. Push to select programmable items and push to enter the item.
to select programmable items and push to enter the item.4. Use key to move the cursor to proper place ( if it need ), use to select or change item value (programmable Value ) and push to confirm.
key to move the cursor to proper place ( if it need ), use to select or change item value (programmable Value ) and push to confirm.5. When all setting is finished, push WR to save to ESC. After that, you can push to check updated parameter.
to check updated parameter.Parameter Display
|
Item |
Specification |
Option or value |
Default |
|
1.OffVolt= |
Low Voltage Protection Threshold |
00.0V£49.9V |
00.0V |
|
2. BrakeForc: |
Brake Force |
50%,75%,100£¥ |
100£¥ |
|
3. DragBrake: |
Drag Brake |
0,5%,10%,15%,20% |
0 |
|
4. RunMode: |
Run Mode |
One, Two, Two2 |
Two2 |
|
5. StartForc: |
Start Force |
20%,25%,30%,35%,40% |
30% |
|
6. Timing: |
Timing |
low, middle ,high and highest |
middle |
|
7.NeutRange: |
the neutral range of throttle |
6%,8%,10% |
8%, |
|
8. InitBrake: |
Initial Brake Force |
5%,10%,20%,30%. |
5% |
|
9. ReverForc: |
Reverse Force |
25%,50%,75%,100%. |
50% |
