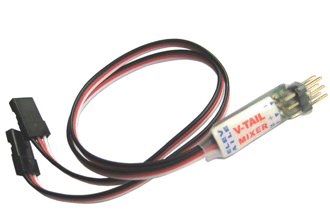

    V-TAIL MIXER(A)

    rc model,rc models,rc toys

    Specifications:
    1.Size:31(L)*8(W)*8mm(H)
    2.Weight:4g(Input wires are included)
    3.Mixing Rate:1:1(Fixed)
    4.Precision:200 Steps
    Wiring Diagram:

    How to use the V-Tail Mixer?
    1.Plug the lead A and lead B of the V-Tail Mixer to the receiver "aileron"and"elevator"channels resectively as per the wiring diagram shown.
    2.Connect the 2 mixcontrolled servos to the V-Tail Mixer in accordance with the wiring diagram.Be sure to observe that the signal wire of servo cable(Usually the color of the signal wire is white or orange) should be point to the"S >"mark
    Note:
    1.Please do not disassemble,modify or repair the V-Tail Mixer by yourself.
    2.Please do not gert water on the V-Tail Mixer.
