GY Brushless Motor  ¡ª   SAKER SERIES  ¡ª SAKER SKD-3650 sendored Inrunner Brushle

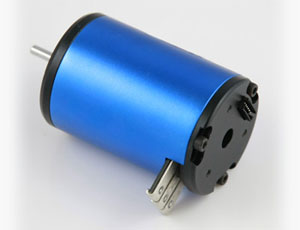

    SAKER SKD-3650 sendored Inrunner Brushle

    SAKER GY-3650 sendored Inrunn

    The most popular for 1/10 & 1/12 cars
    Timing adjustment

    Motor Diameter: 35.8mm
    Motor Length: 52.5mm
    Shaft Diameter: 3.17mm
    Shaft Length: 15mm
    Weight: 165g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 4mm Max    .

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. RPM
    GY-3650/5.5T 5950 3.1A 52A 0.0070 58000
    GY-3650/6.5T 5020 2.5A 48A 0.0085 58000
    GY-3650/7.5T 4320 2.1A 40A 0.0128 58000
    GY-3650/8.5T 3950 1.7A 36A 0.0140 58000
    GY-3650/9.5T 3420 1.5A 31A 0.0172 58000
    GY-3650/10.5T 3120 1.2A 27A 0.0197 58000
    GY-3650/11.5T 2840 1.0A 25A 0.0248 58000
    GY-3650/12.5T 2650 0.9A 23A 0.0287 58000
    GY-3650/14.5T 2350 0.7A 21A 0.0390 58000
    GY-3650/16.5T 2170 0.6A 18A 0.0525 58000
    GY-3650/18.5T 1840 0.5A 16A 0.0634 58000
    GY-3650/21.5T 1580 0.4A 14A 0.0841 58000
