GY Brushless Motor  ¡ª   B20 Inrunner Brushl...  ¡ª B20-30S-FIN Inrunner Brushless Motors

    B20-30S-FIN Inrunner Brushless Motors

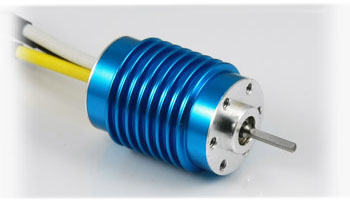

    B20-30S-FIN Inrunner Brushless

    Motor Diameter: 23mm
    Motor Length: 30mm
    Shaft Diameter: 2.0mm
    Shaft Length: 10mm
    Weight: 55g
    Mounting Hole Size: M2.5, pitch 16mm
    Mounting Hole Depth: 3mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B20-30-12S-FIN 7800 2.3A 18A 0.0314 8.4
    B20-30-13S-FIN 7100 2.1A 17A 0.0380 9.2
    B20-30-14S-FIN 6650 1.7A 16A 0.0430 9.8
    B20-30-15S-FIN 6200 1.6A 15A 0.0492 10.5
    B20-30-16S-FIN 5800 1.4A 13A 0.0563 11.2
    B20-30-17S-FIN 5500 1.4A 13A 0.0635 11.8
    B20-30-18S-FIN 5200 1.3A 12A 0.0710 12.5
    B20-30-19S-FIN 4900 1.3A 11A 0.0792 13.3
    B20-30-20S-FIN 4650 1.2A 11A 0.0877 14
    B20-30-22S-FIN 4200 0.9A 10A 0.1062 15
    B20-30-24S-FIN 3900 0.7A 9A 0.1263 15
    B20-30-26S-FIN 3600 0.7A 8A 0.1480 15
    B20-30-28S-FIN 3300 0.5A 8A 0.1718 15
    B20-30-30S-FIN 3100 0.5A 7A 0.1970 15
    B20-30-31S-FIN 3000 0.5A 7A 0.2108 15
