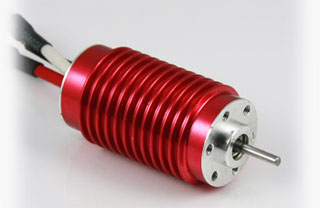

    B20-40L-FIN Inrunner Brushless Motors

    B20-40L-FIN Inrunner Brushless

    Motor Diameter: 23mm
    Motor Length: 40mm
    Shaft Diameter: 2.3mm
    Shaft Length: 10mm
    Weight: 65g
    Mounting Hole Size: M2.5, pitch 16mm
    Mounting Hole Depth: 3mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B20-40-12L-FIN 4800 1.6A 20A 0.0389 13.5
    B20-40-13L-FIN 4500 1.4A 18A 0.0450 14.4
    B20-40-14L-FIN 4200 1.3A 17A 0.0527 15
    B20-40-15L-FIN 3800 1.0A 16A 0.0600 15
    B20-40-16L-FIN 3600 0.8A 15A 0.0689 15
    B20-40-17L-FIN 3400 0.8A 14A 0.0777 15
    B20-40-18L-FIN 3200 0.7A 13A 0.0871 15
    B20-40-19L-FIN 3000 0.7A 12A 0.0968 15
    B20-40-20L-FIN 2900 0.7A 12A 0.1075 15
    B20-40-22L-FIN 2600 0.5A 11A 0.1300 15
    B20-40-24L-FIN 2400 0.5A 10A 0.1585 15
    B20-40-26L-FIN 2200 0.4A 9A 0.1817 15
    B20-40-28L-FIN 2000 0.4A 8A 0.2101 15
    B20-40-30L-FIN 1900 0.3A 7A 0.2416 15
    B20-40-31L-FIN 1800 0.3A 7A 0.2580 15
