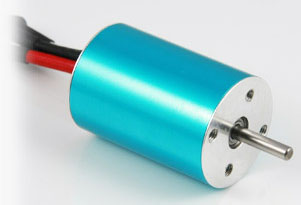

    B24-35S Inrunner Brushless Motors

    B24-35S Inrunner Brushless Mot

    Motor Diameter: 24mm
    Motor Length: 35mm
    Shaft Diameter: 3.0mm
    Shaft Length: 12mm
    Weight: 68g
    Mounting Hole Size: M3, pitch 19mm
    M2.5, pitch 16mm
    Mounting Hole Depth: 3.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B24-35-10S 6900 3.5A 28A 0.0150 9.4
    B24-35-12S 6100 3.1A 25A 0.0230 10.6
    B24-35-14S 5100 2.8A 20A 0.0280 12.7
    B24-35-16S 4400 2.0A 17A 0.0460 14.7
    B24-35-18S 4000 1.5A 15A 0.0570 15
    B24-35-20S 3500 1.0A 13A 0.0760 16
    B24-35-24S 2800 0.5A 11A 0.0990 16
    B24-35-30S 2200 0.4A 9A 0.1600 16
