GY Brushless Motor  ¡ª   B24 Inrunner Brushl...  ¡ª B24-45L Inrunner Brushless Motors

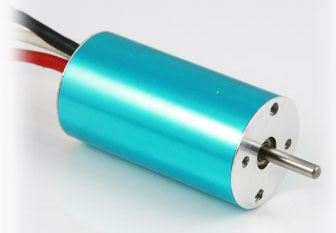

    B24-45L Inrunner Brushless Motors

    B24-45L Inrunner Brushless Mot

    Motor Diameter: 24mm
    Motor Length: 45mm
    Shaft Diameter: 3.0mm
    Shaft Length: 12mm
    Weight: 98g
    Mounting Hole Size: M3, pitch 19mm
    M2.5, pitch 16mm
    Mounting Hole Depth: 3.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B24-45-10L 4400 2.3A 30A 0.0202 14.7
    B24-45-12L 3600 1.7A 26A 0.0291 16
    B24-45-14L 3200 1.4A 22A 0.0375 16
    B24-45-16L 2800 1.0A 19A 0.0520 16
    B24-45-18L 2500 0.9A 17A 0.0640 16
    B24-45-20L 2200 0.8A 16A 0.1075 16
    B24-45-24L 1700 0.5A 14A 0.1208 16
    B24-45-30L 1400 0.3A 11A 0.1926 16
