GY Brushless Motor  ¡ª   B28 Inrunner Brushl...  ¡ª B28-67XL Inrunner Brushless Motors

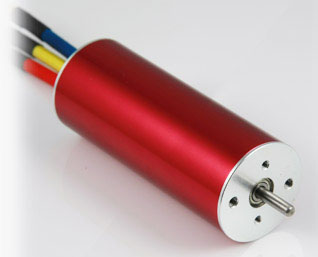

    B28-67XL Inrunner Brushless Motors

    B28-67XL Inrunner Brushless Mo

    Motor Diameter: 27.6mm
    Motor Length: 67mm
    Shaft Diameter: 3.17mm
    Shaft Length: 12mm
    Weight: 210g
    Mounting Hole Size: M2.5, pitch 16mm
    M3, pitch 19mm
    Mounting Hole Depth: 4mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B28-67-06XL 3800 4.8A 70A 0.0071 15.7
    B28-67-07XL 3300 3.3A 60A 0.0096 18.2
    B28-67-08XL 2900 2.3A 50A 0.0125 20.7
    B28-67-09XL 2600 2.0A 47A 0.0159 22
    B28-67-10XL 2300 1.8A 40A 0.0194 22
    B28-67-11XL 2100 1.5A 40A 0.0236 22
    B28-67-12XL 1900 1.5A 35A 0.0282 22
    B28-67-13XL 1800 1.2A 33A 0.0328 22
    B28-67-14XL 1650 1.0A 30A 0.0382 22
    B28-67-15XL 1550 0.9A 27A 0.0439 22
    B28-67-16XL 1450 0.8A 25A 0.0497 22
    B28-67-17XL 1350 0.7A 24A 0.0563 22
    B28-67-19XL 1200 0.6A 20A 0.0703 22
    B28-67-22XL 1050 0.5A 19A 0.0942 22
    B28-67-24XL 950 0.5A 18A 0.1120 22
    B28-67-26XL 900 0.4A 17A 0.1315 22
