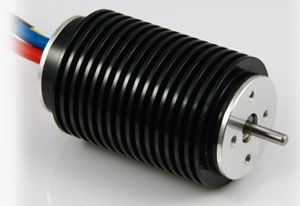

    B28-57L-FIN Inrunner Brushless Motors

    B28-57L-FIN Inrunner Brushless

    Motor Diameter: 35.8mm
    Motor Length: 59mm
    Shaft Diameter: 3.17mm
    Shaft Length: 12mm
    Weight: 205g
    Mounting Hole Size: M3, pitch 16mm
    M3, pitch 19mm
    Mounting Hole Depth: 4.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B28-57-06L-FIN 4800 3.8A 70A 0.0065 12.5
    B28-57-07L-FIN 4100 2.6A 60A 0.0086 14.6
    B28-57-08L-FIN 3600 2.3A 50A 0.0115 16.6
    B28-57-09L-FIN 3200 1.8A 45A 0.0145 18.7
    B28-57-10L-FIN 2900 1.5A 40A 0.0177 20.6
    B28-57-11L-FIN 2600 1.4A 38A 0.0216 22
    B28-57-12L-FIN 2400 1.2A 35A 0.0257 22
    B28-57-13L-FIN 2200 1.2A 30A 0.0301 22
    B28-57-14L-FIN 2000 0.8A 30A 0.0349 22
    B28-57-15L-FIN 1900 0.8A 27A 0.0399 22
    B28-57-16L-FIN 1800 0.8A 26A 0.0455 22
    B28-57-17L-FIN 1700 0.7A 24A 0.0514 22
    B28-57-19L-FIN 1500 0.6A 22A 0.0640 22
    B28-57-22L-FIN 1300 0.5A 19A 0.0859 22
    B28-57-24L-FIN 1200 0.5A 16A 0.1024 22
    B28-57-26L-FIN 1100 0.4A 16A 0.1202 22
