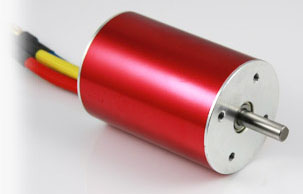

    B36-50S Inrunner Brushless Motors

    B36-50S Inrunner Brushless Mot

    Motor Diameter: 35.8mm
    Motor Length: 50mm
    Shaft Diameter: 5.0mm (3.17mm Customs)
    Shaft Length: 16mm
    Weight: 220g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B36-50-06S 5900 6.9A 108A 0.0034 8.4
    B36-50-07S 5000 6.1A 97A 0.0045 10
    B36-50-08S 4400 5.6A 80A 0.0061 11.2
    B36-50-09S 3900 3.7A 70A 0.0078 12.8
    B36-50-10S 3500 3.6A 65A 0.0095 14.2
    B36-50-11S 3200 2.4A 60A 0.0115 15.6
    B36-50-12S 2900 2.2A 55A 0.0136 17.2
    B36-50-13S 2700 2.0A 50A 0.0161 18.5
    B36-50-14S 2500 1.8A 45A 0.0185 24
    B36-50-15S 2300 1.6A 43A 0.0214 26
    B36-50-16S 2200 1.6A 41A 0.0243 27
    B36-50-17S 2000 1.4A 39A 0.0272 28
    B36-50-18S 1900 1.3A 35A 0.0301 28
    B36-50-19S 1800 1.2A 34A 0.0342 28
    B36-50-20S 1700 1.1A 33A 0.0377 28
