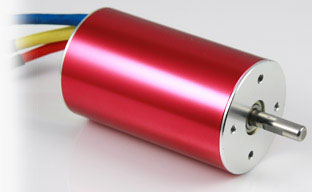

    B36-60L Inrunner Brushless Motors

    B36-60L Inrunner Brushless Mot

    Motor Diameter: 35.8mm
    Motor Length: 60mm
    Shaft Diameter: 5.0mm (3.17mm Customs)
    Shaft Length: 16mm
    Weight: 260g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B36-60-06L 4000 5.9A 100A 0.0044 12.5
    B36-60-07L 3500 5.2A 89A 0.0058 14.2
    B36-60-08L 3000 4.2A 78A 0.0077 16.6
    B36-60-09L 2700 3.4A 68A 0.0097 18.5
    B36-60-10L 2400 2.9A 60A 0.0118 20.8
    B36-60-11L 2200 2.6A 55A 0.0146 22.7
    B36-60-12L 2000 2.1A 50A 0.0173 25
    B36-60-13L 1900 2.1A 47A 0.0203 26
    B36-60-14L 1750 1.9A 45A 0.0234 30
    B36-60-15L 1650 1.6A 40A 0.0268 30
    B36-60-16L 1550 1.5A 38A 0.0310 30
    B36-60-17L 1450 1.3A 36A 0.0345 30
    B36-60-18L 1350 1.2A 34A 0.0388 30
    B36-60-19L 1300 1.1A 32A 0.0432 30
    B36-60-20L 1200 1.0A 30A 0.0479 30
