GY Brushless Motor  ¡ª   B36 Inrunner Brushl...  ¡ª B36-60L-FIN Inrunner Brushless Motors

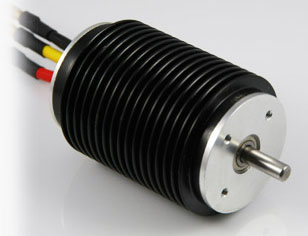

    B36-60L-FIN Inrunner Brushless Motors

    B36-60L-FIN Inrunner Brushless

    Motor Diameter: 43mm
    Motor Length: 61mm
    Shaft Diameter: 5.0mm (3.17mm Customs)
    Shaft Length: 16mm
    Weight: 315g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 5.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B36-60-06L-FIN 4000 5.9A 100A 0.0044 12.5
    B36-60-07L-FIN 3500 5.2A 89A 0.0058 14.2
    B36-60-08L-FIN 3000 4.2A 78A 0.0077 16.6
    B36-60-09L-FIN 2700 3.4A 68A 0.0097 18.5
    B36-60-10L-FIN 2400 2.9A 60A 0.0118 20.8
    B36-60-11L-FIN 2200 2.6A 55A 0.0146 22.7
    B36-60-12L-FIN 2000 2.1A 50A 0.0173 25
    B36-60-13L-FIN 1900 2.1A 47A 0.0203 26
    B36-60-14L-FIN 1750 1.9A 45A 0.0234 30
    B36-60-15L-FIN 1650 1.6A 40A 0.0268 30
    B36-60-16L-FIN 1550 1.5A 38A 0.0310 30
    B36-60-17L-FIN 1450 1.3A 36A 0.0345 30
    B36-60-18L-FIN 1350 1.2A 34A 0.0388 30
    B36-60-19L-FIN 1300 1.1A 32A 0.0432 30
    B36-60-20L-FIN 1200 1.0A 30A 0.0479 30
