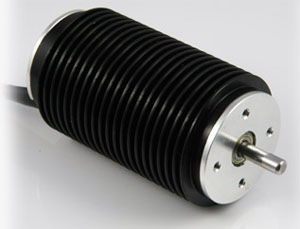

    B36-74XL-FIN Inrunner Brushless Motors

    B36-74XL-FIN Inrunner Brushles

    Motor Diameter: 43mm
    Motor Length: 75mm
    Shaft Diameter: 5.0mm (3.17mm Customs)
    Shaft Length: 16mm
    Weight: 414g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 5.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B36-74-06XL-FIN 2800 5.3A 110A 0.0042 17.8
    B36-74-07XL-FIN 2400 4.6A 95A 0.0057 20.8
    B36-74-08XL-FIN 2100 3.7A 83A 0.0074 23.8
    B36-74-09XL-FIN 1900 2.6A 75A 0.0091 26.3
    B36-74-10XL-FIN 1700 2.4A 66A 0.0115 29.4
    B36-74-11XL-FIN 1500 2.0A 60A 0.0138 30
    B36-74-12XL-FIN 1400 1.8A 55A 0.0165 30
    B36-74-13XL-FIN 1300 1.7A 50A 0.0192 30
    B36-74-14XL-FIN 1200 1.3A 47A 0.0223 30
    B36-74-15XL-FIN 1100 1.1A 45A 0.0257 30
    B36-74-16XL-FIN 1000 1.0A 41A 0.0291 30
    B36-74-17XL-FIN 950 0.9A 39A 0.0329 30
    B36-74-18XL-FIN 900 0.8A 37A 0.0369 30
    B36-74-19XL-FIN 870 0.8A 35A 0.0412 30
    B36-74-20XL-FIN 830 0.8A 33A 0.0456 30
