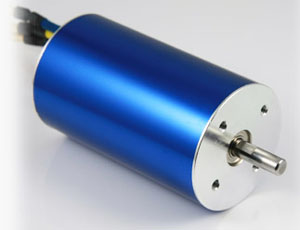

    B45-77L Inrunner Brushless Motors

    B45-77L Inrunner Brushless Mot

    Motor Diameter: 45mm
    Motor Length: 77mm
    Shaft Diameter: 6.0mm (5.0mm Customs)
    Shaft Length: 20mm
    Weight: 555g
    Mounting Hole Size: M4, pitch 30mm
    Mounting Hole Depth: 5.5mm Max.

    Order Name RPM/V No-load Current £¨7.4V£© Max. Amps Resistance Max. Volt(V)
    B45-77-07XL 1900 5.0A 118A 0.0048 26
    B45-77-08XL 1600 3.8A 110A 0.0059 31
    B45-77-09XL 1400 3.2A 95A 0.0088 35
    B45-77-10XL 1200 3.0A 85A 0.0115 41
    B45-77-11XL 1100 2.7A 78A 0.0146 42
    B45-77-12XL 1000 2.4A 70A 0.0172 42
    B45-77-13XL 900 2.2A 65A 0.0210 42
    B45-77-15XL 800 2.0A 56A 0.0287 42
    B45-77-17XL 700 1.6A 48A 0.0385 42
