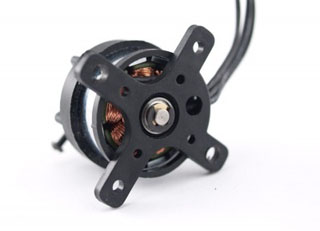

PM19M
PM Series motor Introduction
In order to meet the hobbyists¡¯ needs, our company AEO newly designed unique PM series motor. The Polyamide as material, make it so lightweight, durable and cheap. Nowadays whatever the brushed or brushless metal motor on market, they are facing the expensive and heavy problem, which cause the hobbyists are hesitating while in need of the motor. Now in order to resolve this case, our designed PM 19M/19S thoroughly make hobbyists come true. Our PM series motor has the features below:
Lightweight: Compatible with the prop adapter and prop saver; and the motor base plate is suitable for more motor size; most important, the wire outlet is optimized.
Dissipation: Fan dissipation function upgrades the efficiency.
Use glass fiber & PA material, very cheap!
.
|
Motor: PM19M KV:2200 | |||||||||
|
Weight : |
25.1grams |
A |
3mm |
F |
18mm |
K |
30mm | ||
|
Max. Power : |
100W |
B |
1.5mm |
G |
16mm |
L |
2.5mm | ||
|
Dimension: |
25.2 x 26(mm) |
C |
29.5mm |
H |
2mm |
M |
3mm | ||
|
Length of shaft: |
5(mm) |
D |
26mm |
I |
2mm |
|
| ||
|
Diameter of shaft: |
3.0(mm) |
E |
31mm |
J |
30mm |
|
| ||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
6030 |
7.4 |
6.1 |
45.14 |
12540 |
15.93 |
246 |
8.67 |
5.44 |
0.19 |
|
8 |
6.7 |
53.6 |
13320 |
16.92 |
276 |
9.73 |
5.14 |
0.18 | |
|
8.4 |
7.1 |
59.64 |
13860 |
17.60 |
296 |
10.44 |
4.96 |
0.17 | |
|
7035 |
7.4 |
8.1 |
59.94 |
11460 |
16.98 |
324 |
11.42 |
5.40 |
0.19 |
|
8 |
8.6 |
68.8 |
12060 |
17.87 |
352 |
12.41 |
5.11 |
0.18 | |
|
8.4 |
9.1 |
76.44 |
12360 |
18.31 |
376 |
13.26 |
4.91 |
0.17 | |
