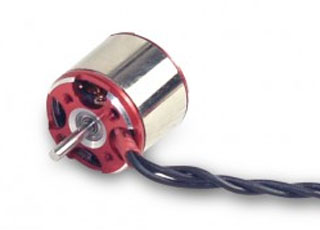

C05XL
|
Motor: C05XL KV:1700 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
7.3 grams | |||||||
|
No Load Data: |
Max. Power : |
4A or 40W | |||||||
|
7V |
0.21A |
Dimension: |
13.9 x 22(mm) | ||||||
|
8V |
0.25A |
Length of shaft: |
5(mm) | ||||||
|
10V |
0.31A |
Diameter of shaft: |
1.5(mm) | ||||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
4025 GWS | |||||||||
|
|
7.4 |
1.10 |
8.14 |
|
|
58 |
2.05 |
7.13 |
0.25 |
|
|
8 |
1.20 |
9.6 |
|
|
64 |
2.26 |
6.67 |
0.24 |
|
|
8.4 |
1.30 |
10.92 |
|
|
68 |
2.40 |
6.23 |
0.22 |
|
|
10 |
1.70 |
17 |
|
|
92 |
3.25 |
5.41 |
0.19 |
|
|
10.5 |
1.80 |
18.9 |
|
|
98 |
3.46 |
5.19 |
0.18 |
|
|
11.1 |
1.90 |
21.09 |
|
|
106 |
3.74 |
5.03 |
0.18 |
|
|
12.6 |
2.30 |
28.98 |
|
|
126 |
4.44 |
4.35 |
0.15 |
|
5030 GWS | |||||||||
|
|
7.4 |
1.60 |
11.84 |
|
|
82 |
2.89 |
6.93 |
0.24 |
|
|
8 |
1.80 |
14.4 |
|
|
92 |
3.25 |
6.39 |
0.23 |
|
|
8.4 |
1.90 |
15.96 |
|
|
98 |
3.46 |
6.14 |
0.22 |
|
|
10 |
2.40 |
24 |
|
|
126 |
4.44 |
5.25 |
0.19 |
|
|
10.5 |
2.50 |
26.25 |
|
|
130 |
4.59 |
4.95 |
0.17 |
|
|
11.1 |
2.70 |
29.97 |
|
|
140 |
4.94 |
4.67 |
0.16 |
|
|
12.6 |
3.00 |
37.8 |
|
|
160 |
5.64 |
4.23 |
0.15 |
|
6030 GWS | |||||||||
|
|
7.4 |
2.00 |
14.8 |
|
|
96 |
3.39 |
6.49 |
0.23 |
|
|
8 |
2.20 |
17.6 |
|
|
108 |
3.81 |
6.14 |
0.22 |
|
|
8.4 |
2.30 |
19.32 |
|
|
112 |
3.95 |
5.80 |
0.20 |
|
|
10 |
2.80 |
28 |
|
|
136 |
4.80 |
4.86 |
0.17 |
|
|
11.1 |
3.00 |
33.3 |
|
|
150 |
5.29 |
4.50 |
0.16 |
|
|
12.6 |
3.50 |
44.1 |
|
|
170 |
6.00 |
3.85 |
0.14 |
|
Motor: C05XL KV:3000 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
7.3 grams | |||||||
|
No Load Data: |
Max. Power : |
4A or 40W | |||||||
|
7V |
0.21A |
Dimension: |
13.9 x 22(mm) | ||||||
|
8V |
0.25A |
Length of shaft: |
5(mm) | ||||||
|
10V |
0.31A |
Diameter of shaft: |
1.5(mm) | ||||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
4025 GWS | |||||||||
|
|
7.4 |
2.70 |
19.98 |
|
|
90 |
3.17 |
4.50 |
0.16 |
|
|
8 |
2.80 |
22.4 |
|
|
104 |
3.67 |
4.64 |
0.16 |
|
|
8.4 |
3.00 |
25.2 |
|
|
110 |
3.88 |
4.37 |
0.15 |
|
|
10 |
3.70 |
37 |
|
|
136 |
4.80 |
3.68 |
0.13 |
|
5030 GWS | |||||||||
|
|
7.4 |
3.50 |
25.9 |
|
|
122 |
4.30 |
4.71 |
0.17 |
|
|
8 |
3.70 |
29.6 |
|
|
132 |
4.66 |
4.46 |
0.16 |
|
|
8.4 |
3.90 |
32.76 |
|
|
140 |
4.94 |
4.27 |
0.15 |
|
Motor: C05XL KV:10800 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
6.8 grams | |||||||
|
No Load Data: |
Max. Power : |
4A or 40W | |||||||
|
3V |
0.70A |
Dimension: |
13.9 x 24(mm) | ||||||
|
4V |
0.82A |
Length of shaft: |
7(mm) | ||||||
|
5V |
0.90A |
Diameter of shaft: |
1.5(mm) | ||||||
