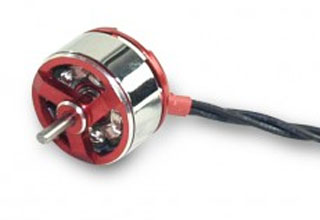

C05M
|
Motor: C05M KV:2900 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
4.6 grams | |||||||
|
No Load Data: |
Max. Power : |
3A or 30W | |||||||
|
7V |
0.18A |
Dimension: |
13.9 x 17(mm) | ||||||
|
8V |
0.21A |
Length of shaft: |
5(mm) | ||||||
|
10V |
0.27A |
Diameter of shaft: |
1.5(mm) | ||||||
|
Motor: C05M KV:3700 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
4.6 grams | |||||||
|
No Load Data: |
Max. Power : |
3A or 30W | |||||||
|
7V |
0.21A |
Dimension: |
13.9 x 17(mm) | ||||||
|
8V |
0.25A |
Length of shaft: |
5(mm) | ||||||
|
10V |
0.31A |
Diameter of shaft: |
1.5(mm) | ||||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
2510 GWS | |||||||||
|
|
7 |
0.73 |
5.11 |
22610 |
14.84 |
28.2 |
0.99 |
5.52 |
0.19 |
|
|
7.5 |
0.80 |
6 |
24380 |
16.00 |
32.8 |
1.16 |
5.47 |
0.19 |
|
|
8 |
0.87 |
6.96 |
25700 |
16.86 |
36.7 |
1.29 |
5.27 |
0.19 |
|
|
9 |
1.01 |
9.09 |
28500 |
18.70 |
41.2 |
1.45 |
4.53 |
0.16 |
|
|
10 |
1.18 |
11.8 |
31050 |
20.37 |
51.2 |
1.81 |
4.34 |
0.15 |
|
|
11.1 |
1.41 |
15.651 |
33850 |
22.21 |
61.2 |
2.16 |
3.91 |
0.14 |
|
3020 GWS | |||||||||
|
|
7 |
1.82 |
12.74 |
16220 |
21.29 |
45 |
1.59 |
3.53 |
0.12 |
|
|
7.5 |
2.00 |
15 |
16680 |
21.89 |
50 |
1.76 |
3.33 |
0.12 |
|
|
8 |
2.19 |
17.52 |
17300 |
22.70 |
54 |
1.90 |
3.08 |
0.11 |
|
|
8.5 |
2.30 |
19.55 |
17850 |
23.43 |
58 |
2.05 |
2.97 |
0.10 |
|
4025 GWS | |||||||||
|
|
7 |
2.80 |
19.6 |
13000 |
17.06 |
65 |
2.29 |
3.32 |
0.12 |
|
|
7.5 |
3.00 |
22.5 |
13300 |
17.45 |
68 |
2.40 |
3.02 |
0.11 |
|
|
8 |
3.40 |
27.2 |
13500 |
17.72 |
72 |
2.54 |
2.65 |
0.09 |
|
|
8.5 |
3.60 |
30.6 |
13800 |
18.11 |
78 |
2.75 |
2.55 |
0.09 |
|
5030 GWS | |||||||||
|
|
7 |
3.20 |
22.4 |
|
|
68 |
2.40 |
3.04 |
0.11 |
|
|
7.5 |
3.50 |
26.25 |
|
|
72 |
2.54 |
2.74 |
0.10 |
|
|
8 |
3.80 |
30.4 |
|
|
76 |
2.68 |
2.50 |
0.09 |
|
|
8.5 |
3.80 |
32.3 |
|
|
78 |
2.75 |
2.41 |
0.09 |
|
Motor: C05M KV:11000 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
4.6 grams | |||||||
|
No Load Data: |
Max. Power : |
6A or 60W | |||||||
|
3V |
0.6A |
Dimension: |
13.9 x 17(mm) | ||||||
|
4V |
0.7A |
Length of shaft: |
5(mm) | ||||||
|
5V |
0.8A |
Diameter of shaft: |
1.5(mm) | ||||||
