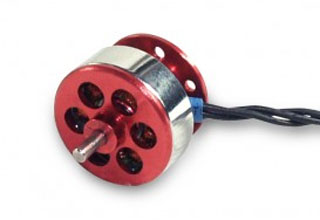

C10
|
Motor: C10 KV:2100 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
8grams | |||||||
|
No Load Data: |
Max. Power : |
4A or 40W | |||||||
|
7V |
0.25A |
14550rpm |
Dimension: |
17.8 x 20(mm) | |||||
|
8V |
0.30A |
16740rpm |
Length of shaft: |
5(mm) | |||||
|
10V |
0.35A |
20850rpm |
Diameter of shaft: |
2(mm) | |||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
4.5x4 GWS | |||||||||
|
|
7 |
2.0 |
14 |
9300 |
15.75 |
76 |
2.68 |
5.43 |
0.19 |
|
|
7.5 |
2.2 |
16 |
9720 |
16.46 |
82 |
2.89 |
5.13 |
0.18 |
|
|
8 |
2.3 |
18 |
10170 |
17.22 |
89 |
3.14 |
4.94 |
0.17 |
|
|
9 |
2.6 |
23 |
11040 |
18.69 |
108 |
3.81 |
4.70 |
0.17 |
|
|
10 |
2.9 |
29 |
11640 |
19.71 |
121 |
4.27 |
4.17 |
0.15 |
|
|
11.1 |
3.3 |
35 |
12210 |
20.68 |
135 |
4.76 |
3.86 |
0.14 |
|
5x3 GWS | |||||||||
|
|
7 |
1.9 |
13 |
9930 |
12.61 |
91 |
3.21 |
7.00 |
0.25 |
|
|
7.5 |
2.0 |
15 |
10320 |
13.11 |
99 |
3.49 |
6.60 |
0.23 |
|
|
8 |
2.2 |
17 |
10800 |
13.72 |
108 |
3.81 |
6.35 |
0.22 |
|
|
9 |
2.5 |
22 |
11730 |
14.90 |
129 |
4.55 |
5.86 |
0.21 |
|
|
10 |
2.8 |
28 |
12480 |
15.85 |
145 |
5.11 |
5.18 |
0.18 |
|
|
11.1 |
3.1 |
33 |
13110 |
16.65 |
163 |
5.75 |
4.94 |
0.17 |
|
6x3 GWS | |||||||||
|
|
7 |
2.4 |
17 |
8250 |
10.48 |
111 |
3.92 |
6.53 |
0.23 |
|
|
7.5 |
2.6 |
19 |
8430 |
10.71 |
120 |
4.23 |
6.32 |
0.22 |
|
Motor:C10 KV:2900 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
8grams | |||||||
|
No Load Data: |
Max. Power : |
4A or 40W | |||||||
|
7V |
0.33A |
20032rpm |
Dimension: |
17.8 x 20(mm) | |||||
|
8V |
0.37A |
22912rpm |
Length of shaft: |
5(mm) | |||||
|
10V |
0.43A |
28754rpm |
Diameter of shaft: |
2(mm) | |||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
4 x 2.5 | |||||||||
|
|
7.0 |
2.6 |
18.13 |
13250 |
14.02 |
97 |
3.42 |
5.35 |
0.19 |
|
|
7.5 |
2.8 |
20.78 |
14200 |
15.03 |
106 |
3.74 |
5.10 |
0.18 |
|
|
8.0 |
3.0 |
23.92 |
14850 |
15.72 |
117 |
4.13 |
4.89 |
0.17 |
|
|
8.5 |
3.3 |
27.63 |
15600 |
16.51 |
128 |
4.51 |
4.63 |
0.16 |
|
5 x 3 | |||||||||
|
|
7.0 |
3.5 |
24.50 |
11200 |
14.22 |
140 |
4.94 |
5.71 |
0.20 |
|
|
7.5 |
3.6 |
27.30 |
11500 |
14.61 |
151 |
5.33 |
5.53 |
0.20 |
|
Motor:C10 KV:3600 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
8grams | |||||||
|
No Load Data: |
Max. Power : |
7A or 40W | |||||||
|
7V |
0.48A |
26100rpm |
Dimension: |
17.8 x 20(mm) | |||||
|
8V |
0.52A |
29700rpm |
Length of shaft: |
5(mm) | |||||
|
10V |
0.65A |
36200rpm |
Diameter of shaft: |
2(mm) | |||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
4 x 2.5 | |||||||||
|
|
7.0 |
4.3 |
30.10 |
16100 |
17.04 |
105 |
3.70 |
3.49 |
0.12 |
|
|
7.5 |
4.6 |
34.50 |
16800 |
17.78 |
115 |
4.06 |
3.33 |
0.12 |
|
|
8.0 |
4.9 |
39.20 |
17300 |
18.31 |
122 |
4.30 |
3.11 |
0.11 |
|
|
8.5 |
5.3 |
45.05 |
17800 |
18.84 |
130 |
4.59 |
2.89 |
0.10 |
|
5*3 | |||||||||
|
|
7.0 |
5.6 |
39.20 |
12180 |
15.47 |
130 |
4.59 |
3.32 |
0.12 |
|
|
7.5 |
2.8 |
20.78 |
12360 |
15.70 |
135 |
4.76 |
6.50 |
0.23 |
|
|
8.0 |
3.0 |
23.92 |
12600 |
16.00 |
140 |
4.94 |
5.85 |
0.21 |
|
|
8.5 |
3.3 |
27.63 |
12850 |
16.32 |
147 |
5.19 |
5.32 |
0.19 |
|
Motor:C10 KV:7750 | |||||||||
|
Tested with AEO E-Power 5A ESC |
Weight : |
8grams | |||||||
|
No Load Data: |
Max. Power : |
6A or 70W | |||||||
|
3V |
0.7A |
23000rpm |
Dimension: |
17.8 x 20(mm) | |||||
|
4V |
0.8A |
30980rpm |
Length of shaft: |
5(mm) | |||||
|
5V |
0.9A |
38200rpm |
Diameter of shaft: |
2(mm) | |||||
