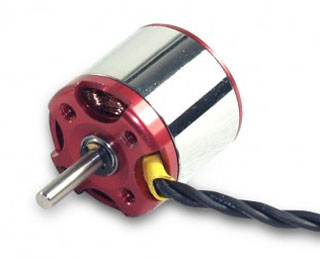

ADH-300L
|
Motor: ADH-300L KV:1100 | |||||||||
|
Tested with AEO E-Power 20A ESC |
Weight : |
38grams | |||||||
|
No Load Data: |
Max. Power : |
15A or 170W | |||||||
|
7V |
0.7A |
7780rpm |
Dimension: |
23 x 40(mm) | |||||
|
8V |
0.7A |
8880rpm |
Length of shaft: |
13(mm) | |||||
|
10V |
0.8A |
11319rpm |
Diameter of shaft: |
3.0(mm) | |||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
8 x 4.3 | |||||||||
|
|
7 |
4.3 |
30.1 |
6140 |
11.18 |
244 |
8.61 |
8.11 |
0.29 |
|
|
7.5 |
4.6 |
34.5 |
6450 |
11.74 |
271 |
9.56 |
7.86 |
0.28 |
|
|
8 |
5.0 |
40 |
6790 |
12.36 |
297 |
10.48 |
7.43 |
0.26 |
|
|
9 |
5.9 |
53.1 |
7450 |
13.56 |
358 |
12.63 |
6.74 |
0.24 |
|
|
10 |
6.8 |
68 |
8050 |
14.65 |
413 |
14.57 |
6.07 |
0.21 |
|
|
11.1 |
7.7 |
85.47 |
8650 |
15.75 |
475 |
16.75 |
5.56 |
0.20 |
|
9 x 4.7 | |||||||||
|
|
7 |
6.5 |
45.15 |
5160 |
10.27 |
330 |
11.64 |
7.31 |
0.26 |
|
|
7.5 |
6.9 |
51.525 |
5370 |
10.68 |
356 |
12.56 |
6.91 |
0.24 |
|
|
8 |
7.4 |
59.2 |
5610 |
11.16 |
388 |
13.69 |
6.55 |
0.23 |
|
|
9 |
8.5 |
76.5 |
6150 |
12.24 |
455 |
16.05 |
5.95 |
0.21 |
|
|
10 |
9.7 |
97 |
6550 |
13.03 |
534 |
18.84 |
5.51 |
0.19 |
|
|
11.1 |
10.8 |
119.88 |
6970 |
13.87 |
592 |
20.88 |
4.94 |
0.17 |
|
10 x 4.7 | |||||||||
|
|
7 |
8.2 |
57.4 |
4075 |
8.11 |
360 |
12.70 |
6.27 |
0.22 |
|
|
7.5 |
8.9 |
66.75 |
4210 |
8.38 |
380 |
13.40 |
5.69 |
0.20 |
|
|
8 |
9.8 |
78.4 |
4360 |
8.67 |
410 |
14.46 |
5.23 |
0.18 |
|
|
9 |
11.1 |
99.9 |
4550 |
9.05 |
445 |
15.70 |
4.45 |
0.16 |
|
|
10 |
12.4 |
124 |
4760 |
9.47 |
500 |
17.64 |
4.03 |
0.14 |
|
|
11.1 |
13.8 |
153.18 |
4950 |
9.85 |
545 |
19.22 |
3.56 |
0.13 |
|
Motor: ADH-300L KV:2600 | |||||||||
|
Tested with AEO E-Power 20A ESC |
Weight : |
38grams | |||||||
|
No Load Data: |
Max. Power : |
20A or 220W | |||||||
|
7V |
0.9A |
18100rpm |
Dimension: |
23 x 40(mm) | |||||
|
8V |
1A |
20100rpm |
Length of shaft: |
13(mm) | |||||
|
10V |
1.2A |
25600rpm |
Diameter of shaft: |
3.0(mm) | |||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
GWS 6030*3 | |||||||||
|
|
7.4 |
9.8 |
72.52 |
|
|
340 |
11.99 |
4.69 |
0.17 |
|
|
8.4 |
11.4 |
95.76 |
|
|
405 |
14.29 |
4.23 |
0.15 |
|
|
10 |
14.6 |
146 |
|
|
520 |
18.34 |
3.56 |
0.13 |
|
|
11.1 |
16.1 |
178.71 |
|
|
575 |
20.28 |
3.22 |
0.11 |
|
Motor: ADH-300L KV:3900 | |||||||||
|
Tested with AEO E-Power 40A ESC |
Weight : |
33grams | |||||||
|
No Load Data: |
Max. Power : |
20A or 220W | |||||||
|
7V |
1.8A |
27200rpm |
Dimension: |
23 x 40(mm) | |||||
|
8V |
1.8A |
31000rpm |
Length of shaft: |
13(mm) | |||||
|
10V |
2A |
38900rpm |
Diameter of shaft: |
3.0(mm) | |||||
|
Motor: ADH-300L KV:4300 | |||||||||
|
Tested with AEO E-Power 40A ESC |
Weight : |
33grams | |||||||
|
No Load Data: |
Max. Power : |
20A or 220W | |||||||
|
7V |
2.4A |
30050rpm |
Dimension: |
23 x 40(mm) | |||||
|
8V |
2.5A |
34500rpm |
Length of shaft: |
13(mm) | |||||
|
10V |
2.9A |
42350rpm |
Diameter of shaft: |
3.0(mm) | |||||
