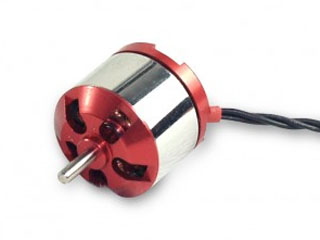

Motor: ADH100 KV:1500

Tested with AEO E-Power 5A ESC

Weight :

13grams

No Load Data:

Max. Power :

4A or 40W

7V

0.32A

10693 rpm

Dimension:

18 x 25(mm)

8V

0.37A

12345 rpm

Length of shaft:

5(mm)

10V

0.41A

15109 rpm

Diameter of shaft:

2(mm)

Prop

Volts

Amps

Watts

RPM

Pitch Speed(m/s)

Thrust (g)

Thrust (oz)

Efficiency(g/W)

Efficiency(oz/W)

5 x 3 GWS

7.0

1.38

9.66

8750

11.11

76

2.68

7.87

0.28

7.5

1.49

11.175

9330

11.85

86

3.03

7.70

0.27

8.0

1.69

13.52

9850

12.51

95

3.35

7.03

0.25

9.0

1.96

17.64

10550

13.40

139

4.90

7.88

0.28

10.0

2.20

22

11550

14.67

143

5.04

6.50

0.23

11.1

2.50

27.75

12600

16.00

165

5.82

5.95

0.21

6 x 3 GWS

7.0

1.80

12.6

8000

10.16

106

3.74

8.41

0.30

7.5

2.00

15

8400

10.67

118

4.16

7.87

0.28

8.0

2.20

17.6

8800

11.18

128

4.51

7.27

0.26

9.0

2.50

22.5

9600

12.19

153

5.40

6.80

0.24

10.0

2.90

29

10300

13.08

184

6.49

6.34

0.22

11.1

3.30

36.63

10900

13.84

210

7.41

5.73

0.20

7 x 3.5 GWS

7.0

2.30

16.1

7050

10.45

134

4.73

8.32

0.29

7.5

2.50

18.75

7450

11.04

144

5.08

7.68

0.27

8.0

2.70

21.6

7750

11.48

157

5.54

7.27

0.26

8.5

2.90

24.65

8100

12.00

168

5.93

6.82

0.24

Motor: ADH100 KV:1800

Tested with AEO E-Power 5A ESC

Weight :

13grams

No Load Data:

Max. Power :

4A or 40W

7V

0.35A

12350 rpm

Dimension:

18 x 25(mm)

8V

0.38A

14170 rpm

Length of shaft:

5(mm)

10V

0.42A

18180 rpm

Diameter of shaft:

2(mm)

Prop

Volts

Amps

Watts

RPM

Pitch Speed(m/s)

Thrust (g)

Thrust (oz)

Efficiency(g/W)

Efficiency(oz/W)

5 x 3 GWS

7.0

1.68

11.76

9530

12.10

89

3.14

7.57

0.27

7.5

1.83

13.725

10055

12.77

103

3.63

7.50

0.26

8.0

2.01

16.08

10600

13.46

112

3.95

6.97

0.25

9.0

2.38

21.42

11550

14.67

138

4.87

6.44

0.23

10.0

2.82

28.2

12450

15.81

156

5.50

5.53

0.20

11.1

3.12

34.632

13300

16.89

188

6.63

5.43

0.19

6 x 3 GWS

7.0

2.26

15.82

8450

10.73

131

4.62

8.28

0.29

7.5

2.48

18.6

8975

11.40

143

5.04

7.69

0.27

8.0

2.70

21.6

9400

11.94

158

5.57

7.31

0.26

8.5

2.92

24.82

9740

12.37

170

6.00

6.85

0.24

Motor: ADH100 KV:2000

Tested with AEO E-Power 10A ESC

Weight :

13grams

No Load Data:

Max. Power :

6A or 65W

7V

0.39A

13980 rpm

Dimension:

18 x 25(mm)

8V

0.41A

15970 rpm

Length of shaft:

5(mm)

10V

0.47A

19980 rpm

Diameter of shaft:

2(mm)

Prop

Volts

Amps

Watts

RPM

Pitch Speed(m/s)

Thrust (g)

Thrust (oz)

Efficiency(g/W)

Efficiency(oz/W)

4*2.5 GWS

7.0

1.51

10.57

11925

15.14

66

2.33

6.24

0.22

7.5

1.60

12

12832

16.30

76

2.68

6.33

0.22

8.0

1.80

14.4

13402

17.02

86

3.03

5.97

0.21

9.0

2.10

18.9

14980

19.02

104

3.67

5.50

0.19

10.0

2.40

24

16200

20.57

122

4.30

5.08

0.18

11.1

2.80

31.08

17610

22.36

143

5.04

4.60

0.16

5*3 GWS

7.0

2.00

14

10700

13.59

108

3.81

7.71

0.27

7.5

2.20

16.5

11220

14.25

122

4.30

7.39

0.26

8.0

2.40

19.2

11740

14.91

130

4.59

6.77

0.24

9.0

3.00

27

12860

16.33

155

5.47

5.74

0.20

10.0

3.50

35

13620

17.30

178

6.28

5.09

0.18

11.1

4.00

44.4

14640

18.59

198

6.98

4.46

0.16

6*3 GWS

7.0

2.90

20.3

9360

13.87

140

4.94

6.90

0.24

7.5

3.20

24

9720

14.40

150

5.29

6.25

0.22

8.0

3.40

27.2

10080

14.94

165

5.82

6.07

0.21

9.0

3.80

34.2

10800

16.00

188

6.63

5.50

0.19

10.0

4.50

45

11500

17.04

217

7.65

4.82

0.17

11.1

5.00

55.5

12000

17.78

237

8.36

4.27

0.15

7*3.5 GWS

7.0

3.50

24.5

8340

12.36

160

5.64

6.53

0.23

7.5

3.80

28.5

8640

12.80

168

5.93

5.89

0.21

8.0

4.00

32

8888

13.17

180

6.35

5.63

0.20

8.5

4.20

35.7

9120

13.51

193

6.81

5.41

0.19

Motor: ADH100 KV:2200

Tested with AEO E-Power 10A ESC

Weight :

13grams

No Load Data:

Max. Power :

6A or 65W

7V

0.40A

15500 rpm

Dimension:

18 x 25(mm)

8V

0.42A

17600 rpm

Length of shaft:

5(mm)

10V

0.48A

21900 rpm

Diameter of shaft:

2(mm)

Motor: ADH100 KV:2400

Tested with AEO E-Power 10A ESC

Weight :

13grams

No Load Data:

Max. Power :

6A or 65W

7V

0.39A

16530 rpm

Dimension:

18 x 25(mm)

8V

0.41A

18800 rpm

Length of shaft:

5(mm)

10V

0.47A

23700 rpm

Diameter of shaft:

2(mm)

Prop

Volts

Amps

Watts

RPM

Pitch Speed(m/s)

Thrust (g)

Thrust (oz)

Efficiency(g/W)

Efficiency(oz/W)

4*2.5 GWS

7.0

1.95

13.65

13140

16.69

75

2.65

5.49

0.19

7.5

2.08

15.6

13920

17.68

84

2.96

5.38

0.19

8.0

2.32

18.56

14880

18.90

98

3.46

5.28

0.19

9.0

2.69

24.21

16260

20.65

119

4.20

4.92

0.17

10.0

3.18

31.8

17640

22.40

136

4.80

4.28

0.15

11.1

3.66

40.626

19020

24.16

162

5.71

3.99

0.14

5*3 GWS

7.0

2.93

20.51

11400

14.48

120

4.23

5.85

0.21

7.5

3.18

23.85

11880

15.09

133

4.69

5.58

0.20

8.0

3.54

28.32

12540

15.93

148

5.22

5.23

0.18

9.0

4.03

36.27

13380

16.99

169

5.96

4.66

0.16

10.0

4.76

47.6

14520

18.44

203

7.16

4.26

0.15

11.1

5.25

58.275

15420

19.58

230

8.11

3.95

0.14

6*3 GWS

7.0

3.79

26.53

10080

14.94

158

5.57

5.96

0.21

7.5

4.15

31.125

10560

15.65

162

5.71

5.20

0.18

8.0

4.40

35.2

10860

16.09

174

6.14

4.94

0.17

8.5

4.76

40.46

11340

16.80

185

6.53

4.57

0.16

7*3.5 GWS

7.0

4.40

30.8

8580

12.71

155

5.47

5.03

0.18

7.5

4.89

36.675

9060

13.42

177

6.24

4.83

0.17

8.0

5.50

44

9600

14.22

208

7.34

4.73

0.17

Motor: ADH100 KV:4250

Tested with AEO E-Power 10A ESC

Weight :

12grams

No Load Data:

Max. Power :

6A or 65W

7V

0.89A

29750 rpm

Dimension:

18 x 25(mm)

8V

0.97A

33850 rpm

Length of shaft:

5(mm)

10V

1.13A

42000 rpm

Diameter of shaft:

2(mm)

Motor: ADH100 KV:5250

Tested with AEO E-Power 10A ESC

Weight :

12grams

No Load Data:

Max. Power :

6A or 65W

7V

1.03A

36740 rpm

Dimension:

18 x 25(mm)

8V

1.13A

41800 rpm

Length of shaft:

5(mm)

10V

1.27A

52400 rpm

Diameter of shaft:

2(mm)
