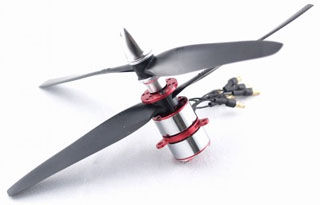

AEO MOTOR — Contra-rotating Motor — CR23M
CR23M
|
Motor: CR23M KV: 1550 | |||||||||
|
Tested with AEO E-Power 15*A ESC * 2 |
Weight : |
58g | |||||||
|
No Load Data: |
Max. Power : |
| |||||||
|
7V |
1.7 |
Dimension: |
23*54 | ||||||
|
8V |
1.8 |
Length of shaft: |
13(mm) | ||||||
|
10V |
2 |
Diameter of shaft: |
3.0(mm) | ||||||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
7035*3 GWS *2 | |||||||||
|
|
7.4 |
10.5 |
77.7 |
|
|
375 |
13.23 |
4.83 |
0.17 |
|
|
8 |
11.6 |
92.8 |
|
|
415 |
14.64 |
4.47 |
0.16 |
|
|
8.4 |
12.3 |
103.32 |
|
|
460 |
16.23 |
4.45 |
0.16 |
|
|
10 |
15.6 |
156 |
|
|
595 |
20.99 |
3.81 |
0.13 |
|
|
11.1 |
18 |
199.8 |
|
|
695 |
24.51 |
3.48 |
0.12 |
|
|
12.6 |
21.4 |
269.64 |
|
|
800 |
28.22 |
2.97 |
0.10 |
