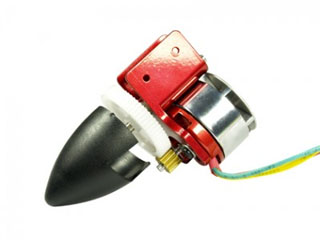

GPS-400
|
GPS-400 kv 3600 | |||||||||
|
Tested with AEO E-Power 40A ESC | |||||||||
|
Motor: brushless Motor |
Weight : |
78 grams | |||||||
|
NOLoad: |
10V |
35600 rpm |
Max. Power : |
40A/450W | |||||
|
|
|
|
|
|
Diameter of shaft: |
3mm | |||
|
|
|
|
|
|
Gear Ratio |
72:20 | |||
|
Prop |
Volts |
Amps |
|
RPM |
Pitch Speed(m/s) |
Thrust (g) |
Thrust (oz) |
Efficiency(g/W) |
Efficiency(oz/W) |
|
GWS 1060 | |||||||||
|
|
11.1 |
13.1 |
145.4 |
|
|
770 |
27.16 |
5.30 |
0.19 |
|
GWS 1080 | |||||||||
|
|
11.1 |
18.5 |
205.4 |
|
|
790 |
27.87 |
3.85 |
0.14 |
|
GWS 1047 | |||||||||
|
|
11.1 |
17.5 |
194.3 |
|
|
980 |
34.57 |
5.05 |
0.18 |
|
GWS 1147 | |||||||||
|
|
11.1 |
18.8 |
208.7 |
|
|
1140 |
40.21 |
5.46 |
0.19 |
|
GWS 1260 | |||||||||
|
|
11.1 |
27.0 |
299.7 |
|
|
1330 |
46.91 |
4.44 |
0.16 |
|
GWS 1365 | |||||||||
|
|
11.1 |
30.0 |
333.0 |
|
|
1520 |
53.62 |
4.56 |
0.16 |
